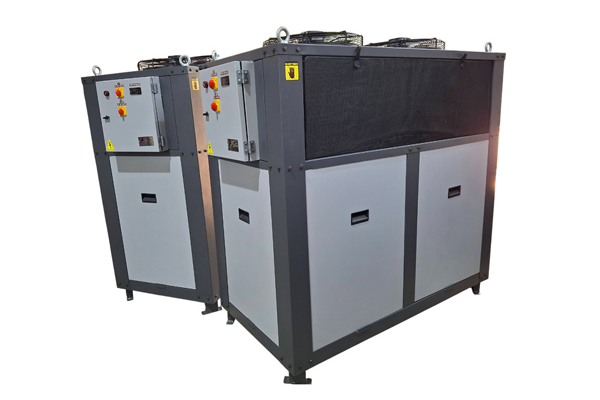

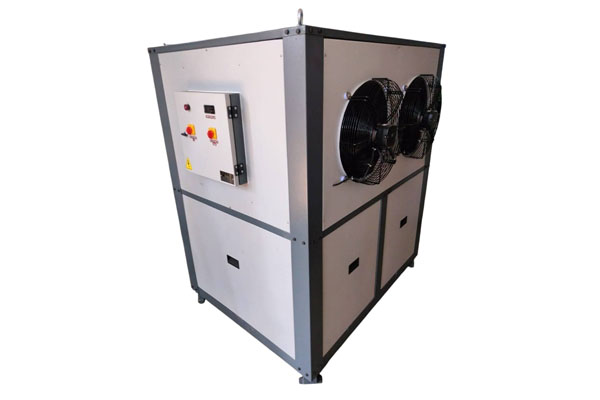

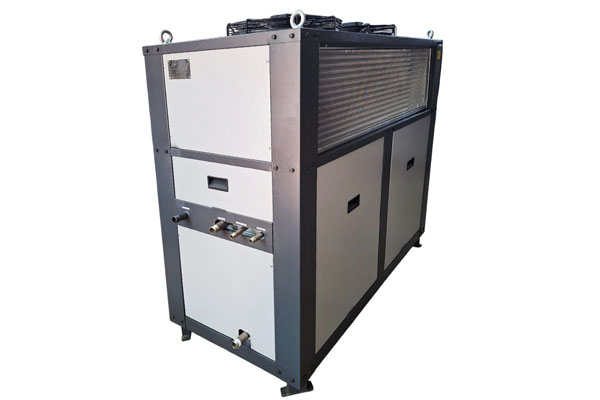

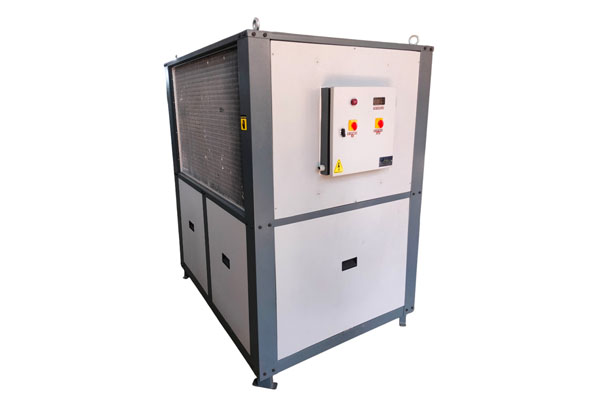

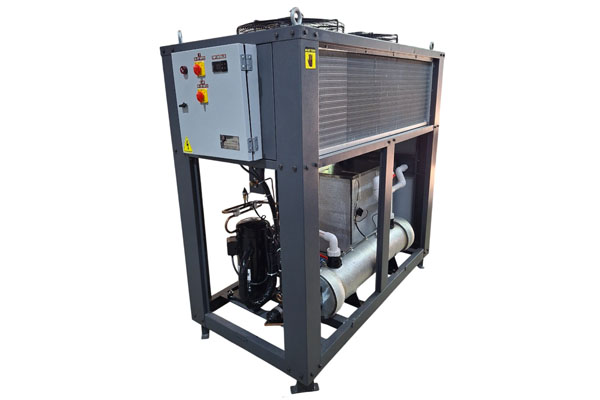

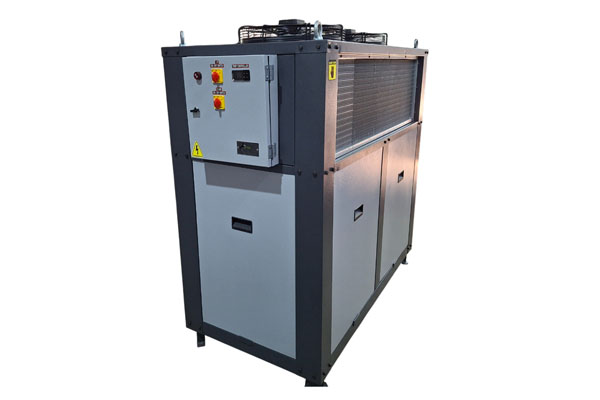

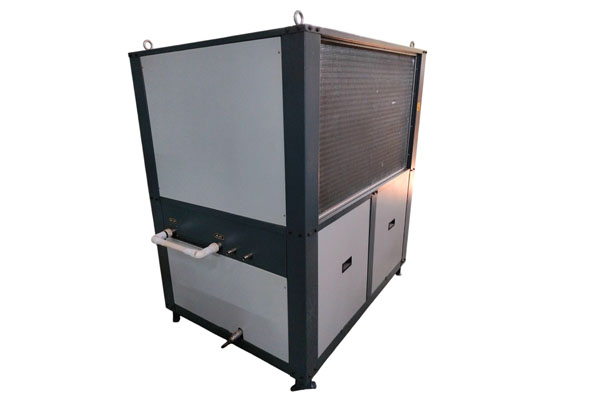

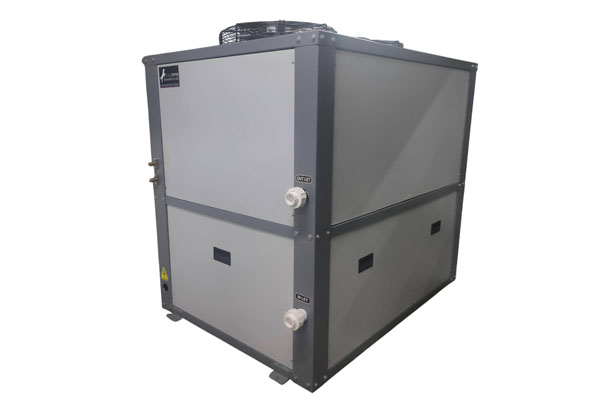

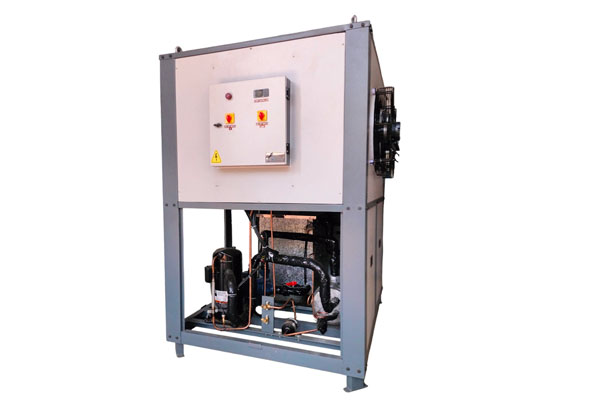

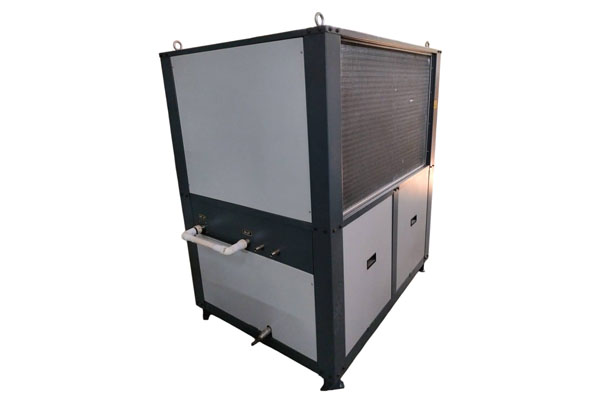

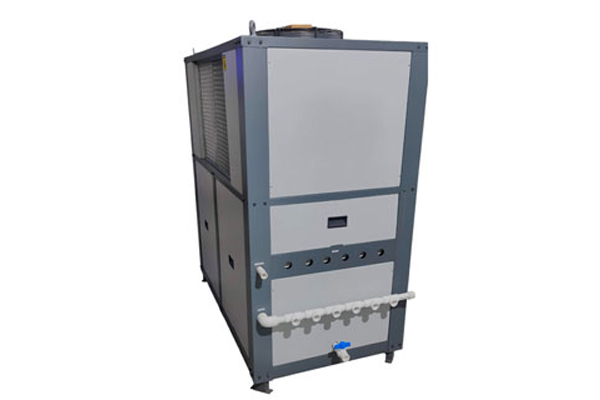

 5 TR Industrial Process Chiller

5 TR Industrial Process Chiller

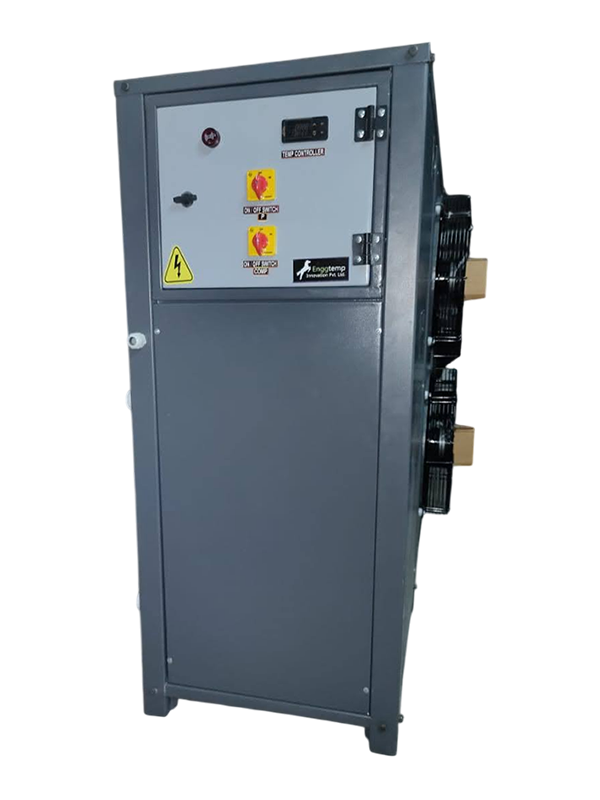

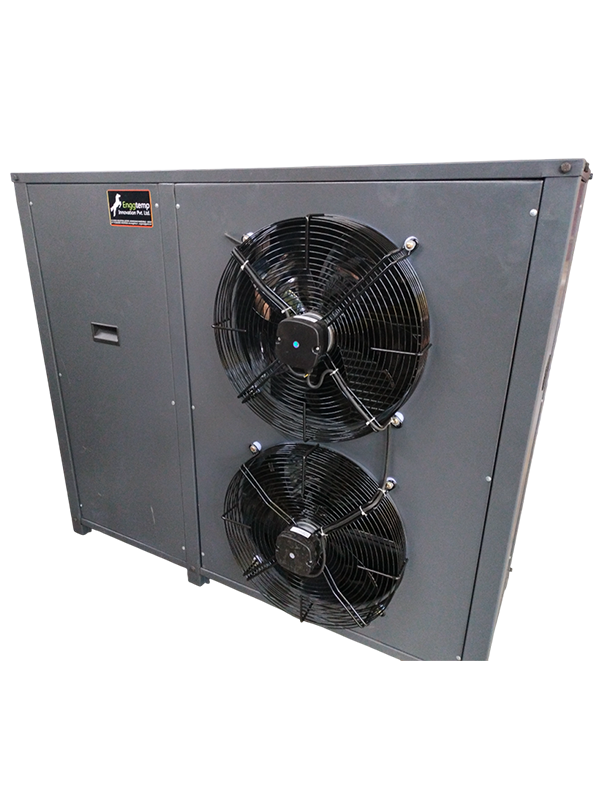

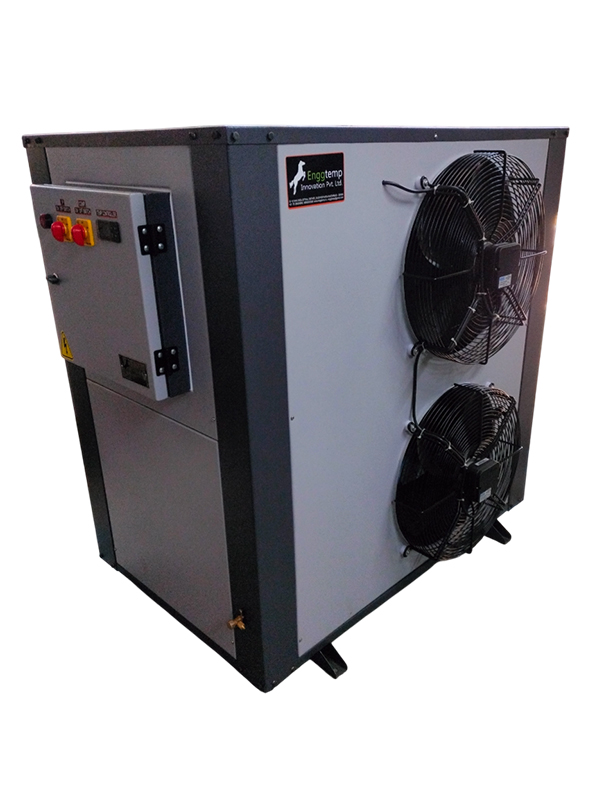

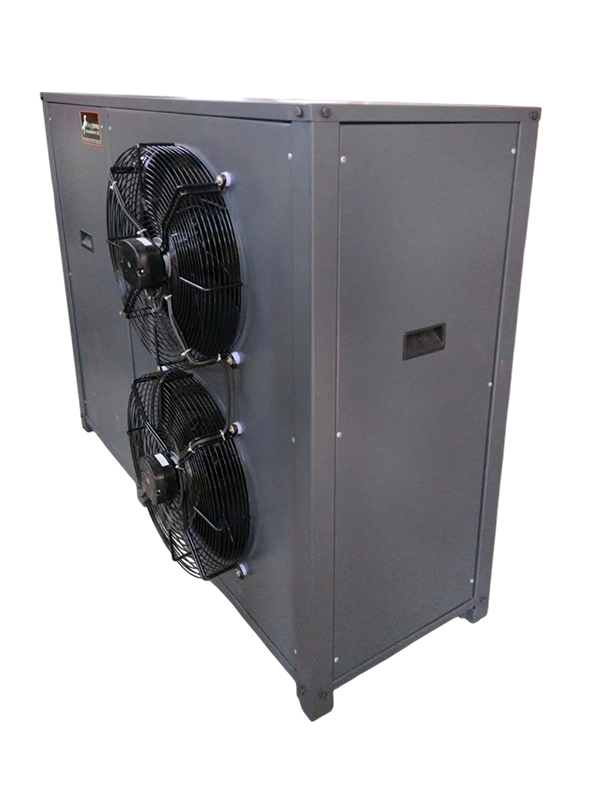

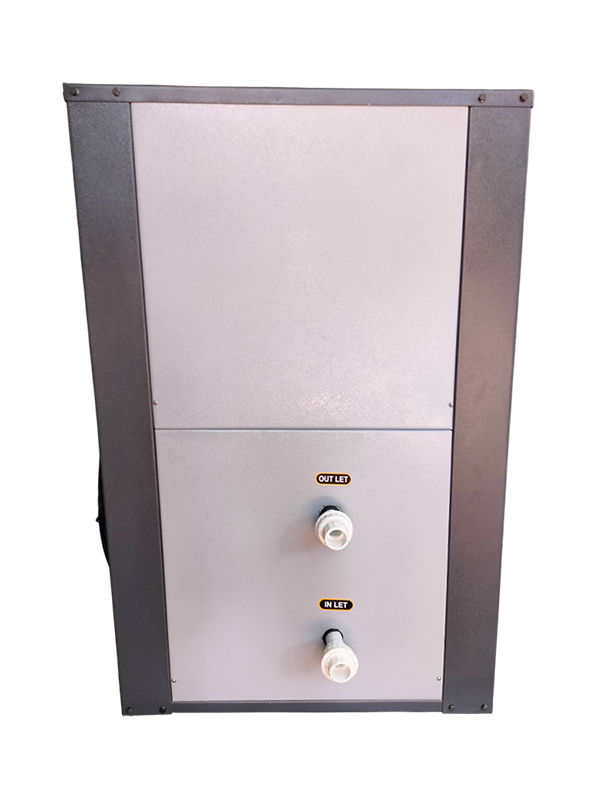

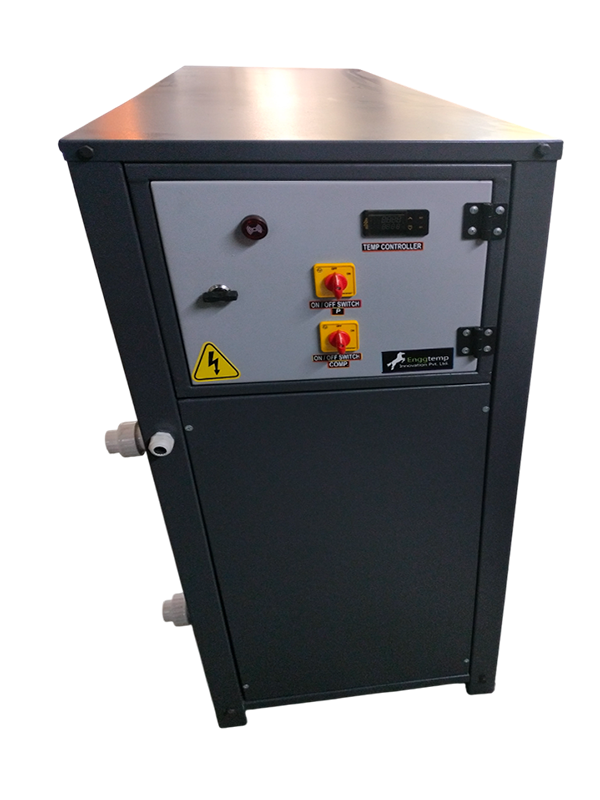

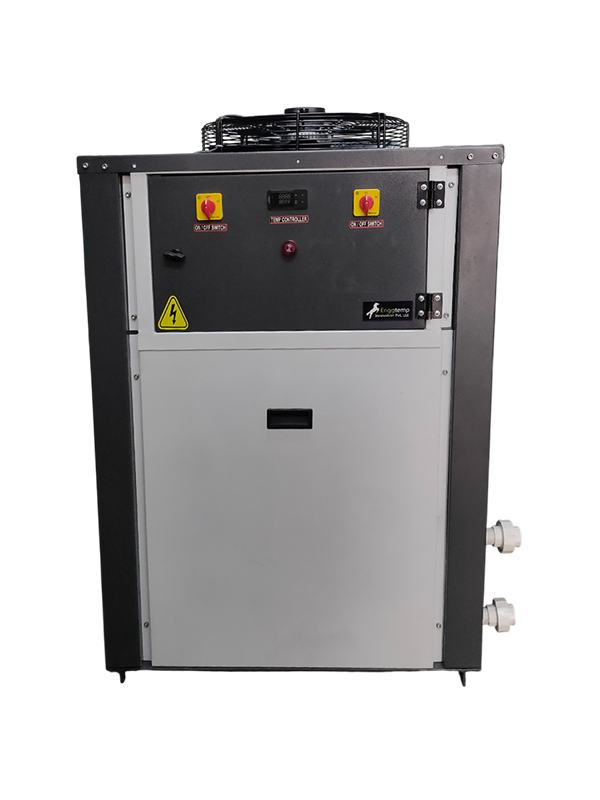

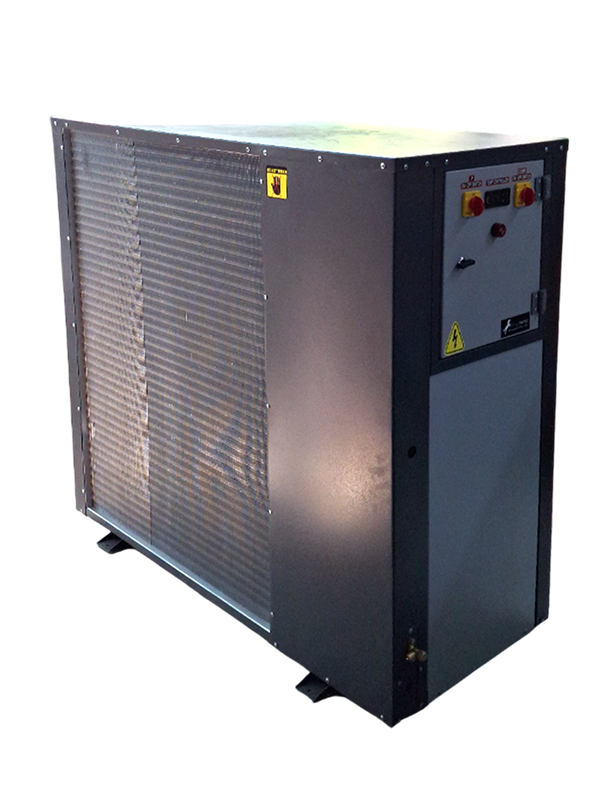

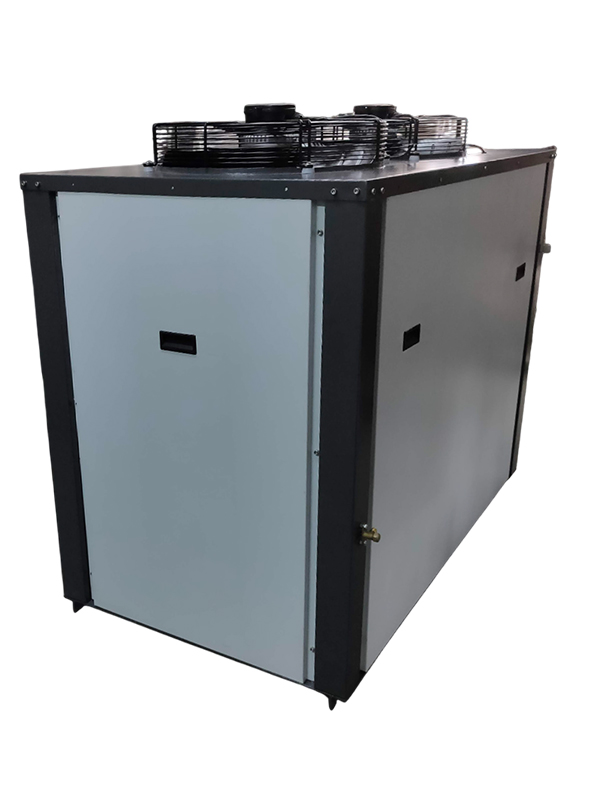

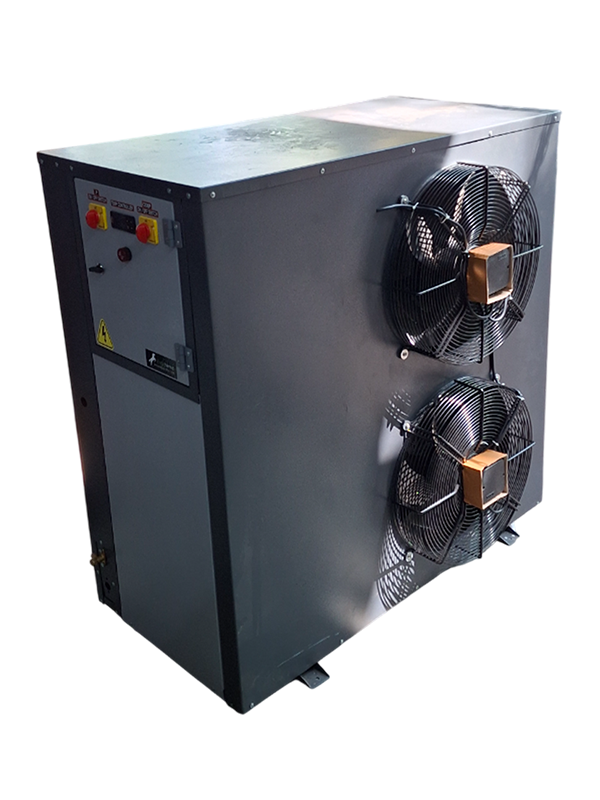

  5 TR RO Water Chiller

5 TR RO Water Chiller
Manufacturer and supplier of 5 tr water chiller

Technical Data Sheet

SR.NO DESCRIPTION  5 TR INDUSTRIAL   5 TR RO WATER
1 FLUID TO BE CHILLED  RO WATER  RO WATER
2 CHILLER CAPACITY  5 TR  5 TR
3 AMBIENT TEMPERATURE  20°C to 40°C  20°C to 40°C
4 WATER INLET TEMPERATURE  35 ˚C  35
5 REQUIRED WATER TEMPERATURE  15˚C  15˚C
6 REQUIRED FLOW RATE OF WATER (LPH)  750 LPH  750 LPH
7 POOL DOWN TIME  1 HR  1 HR
8 PROCESS TYPE  COOLING  COOLING
9 COMPRESSOR  EMERSION MAKE ZR 72  EMERSION MAKE ZR 72
 5.5 KW/50 HZ/400 volte  5.5 KW/50 HZ/400 volte
10 COMPRESSOR TYPE  SCROLL  SCROLL
11 EVAPORATOR (CHILLER)  SHELL & TUBE ( S.S 304)  PLATE TYPE HEAT EXCHANGER
12 CONDENSER  ALLUMINUM FIN AND COPPER TUBE CONDENSER  ALLUMINUM FIN AND COPPER TUBE CONDENSER
13 CONDENSING FAN  AXIL FAN/3 PHASE/440V/50HZ  AXIL FAN/3 PHASE/440V/50HZ
14 CICULATION PUMP  1 HP/3 PHASE  -----------
15 CONTROL INSTRUMENT OF SYSTEM  LOW PRESSURE SWITCH  LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH  HIGH PRESSURE SWITCH
FILTER DRIEAR  FILTER DRIEAR
THERMOSTATIK EXPANTION VALVE  THERMOSTATIK EXPANTION VALVE
FLOW SWITCH  FLOW SWITCH
16 ELECTRIC CONTROLL PENAL  SINGLE PHASE PRIVINDER  SINGLE PHASE PRIVINDER
O/L RELLAY  O/L RELLAY
TEMPRATURE CONTROLLER  TEMPRATURE CONTROLLER
17 REFRIGERANT   R 22   R 22
18 ELECTRIC LOAD  8 KW ± 10%  8 KW ± 10%
19 BODY  GI POWDER COATED PIPE STRUCURE BODY WITH S.S 304 GARDE 100 LTR TANK  GI POWDER COATED CDU TYPE
20 TANK  100 LTR  ---------
