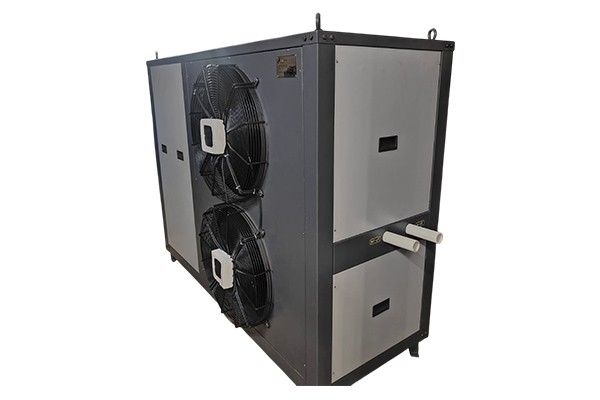

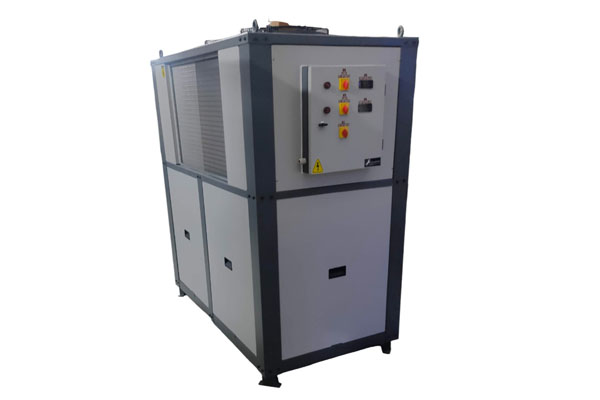

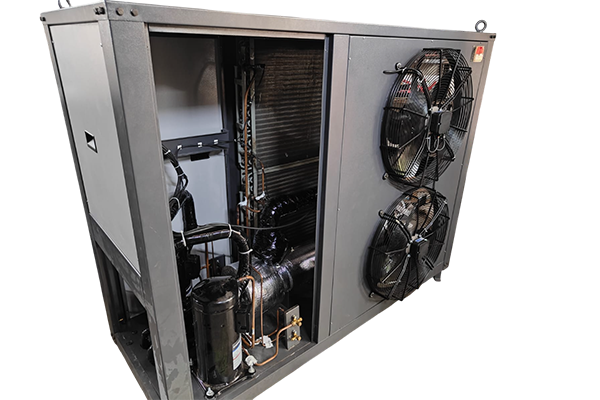

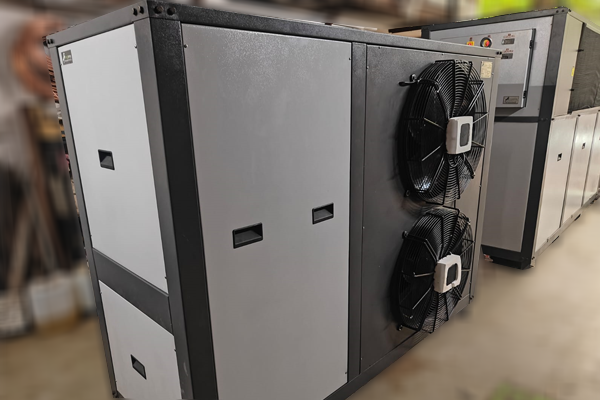

 10 TR Industrial Process Chiller

10 TR Industrial Process Chiller
10 TR Water Cooled Chiller
10 TR Chiller
10 tr air cooled chiller
10 tr water chiller system
10 tr air cooled compact chiller
10 tr chiller machine manufacturers in india
air cooled water chiller, 10 tr water chiller system

Technical Data Sheet

SR.NO DESCRIPTION
1 FLUID TO BE CHILLED RO WATER
2 REQUIRED CHILLER CAPACITY 10 TR
3 AMBIENT TEMPERATURE 20°C to 40°C
4 WATER INLET TEMPERATURE 30 ˚C
 5 REQUIRED WATER TEMPERATURE 10˚C
6 REQUIRED FLOW RATE OF WATER (LPH) 1000 LPH
7 PRODUCT POOL DOWN TIME 1 HR
8 PROCESS TYPE COOLING
9 COMPRESSOR EMERSION MAKE ZR 72
5.75 KW/50 HZ/400 volte
10 COMPRESSOR TYPE SCROLL
11 EVAPORATOR (CHILLER) SHELL & TUBE
12 CONDENSER ALLUMINUM FIN AND COPPER TUBE CONDENSER
13 CONDENSING FAN AXIL FAN
14 CICULATION PUMP LUBI/CRI/ CROMPTON
15 CONTROL INSTRUMENT OF SYSTEM LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH
FILTER DRIEAR
THERMOSTATIK EXPANTION VALVE
FLOW SWITCH
16 ELECTRIC CONTROLL PENAL SINGLE PHASE PRIVINDER
O/L RELLAY
TEMPRATURE CONTROLLER
17 REFRIGERANT

R 22

18 ELECTRIC LOAD 16 KW ± 10%
